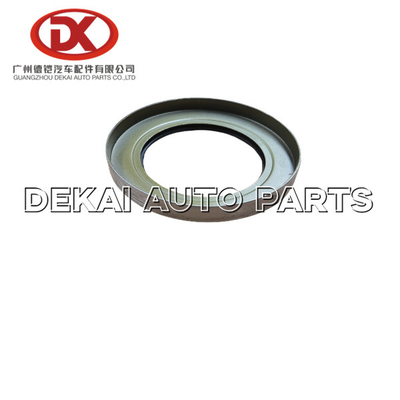

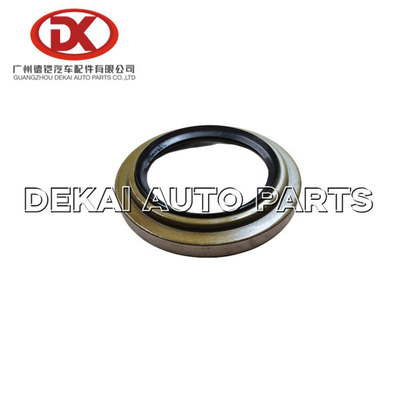

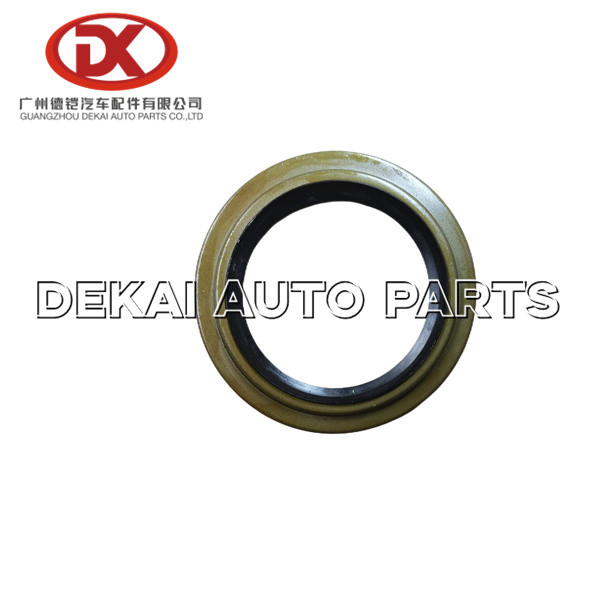

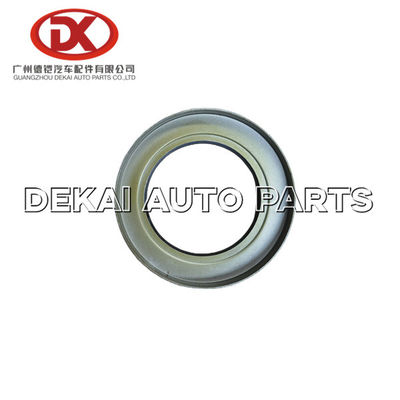

6WF1 6WG1 Oil Seal 1 09625129 0 1096251290 CYH23 CYH51 CYH52 CYH77

6WF1 6WG1 Oil Seal 1 09625129 0 1096251290 CYH23 CYH51 CYH52 CYH77

1096251290 1 09625129 0 Oil Seal ISUZU CYH23 CYH51 CYH52 CYH77

More Parts:

What is an Oil Seal?
Oil seals, also referred to as shaft seals, are widely used to prevent the leakage of medium (such as oils and grease) along a rotating shaft. This leak prevention is primarily achieved by the sealing element which can be made from a wide range of materials that are chosen according to each application. They are commonly used in gearboxes, hydraulic cylinders, and related components.
Purpose of an Oil Seal
An oil seal is designed to perform three major functions: to prevent lubricants from leaking outside the seal even under high pressure, to act as a barrier to retain the lubricating oil, and to prevent dirt and other contaminants from entering the unit.
Construction of an Oil Seal
oil seal constructionOil seals normally consist of three basic components: the sealing element, the metal , and garter spring.
Sealing Element
The sealing element makes up the interior of the oil seal, and the materials commonly used are:
a. Nitrile Rubber (NBR) – this is the most commonly used material. It has good heat resistance properties and has good resistance to salt solutions, oils, hydraulic oils, and gasoline. Operating temperatures are recommended from -40 to 248⁰ F (-40 to 120 deg.C). Nitrile also functions well in a dry environment, but only for intermittent periods. The disadvantage of this material is poor chemical resistance.
b. Polyacrylate Rubber (PA) – also known as acrylic rubber, this material has better heat resistance than nitrile. PA is also recommended for a high surface speed environment. Operation temperatures are recommended from -4 to 302⁰ F (-20 to 150⁰ C). Polyacrylate rubber should not be used with water or in temperature below -4⁰ F (20⁰ C).
c. Silicone Rubber (SI) – these compounds operate effectively in a broad temperature range of -58⁰ F to 356⁰ F (-50 to 180⁰ C). Silicone rubber is a leading choice for its resistance to both low temperatures and heat. The high lubricant absorbency of the material minimizes friction and wear. These oil seals are usually used as crankshaft seals. Silicone has poor resistance to hydrolysis and should not be used in oxidized or hypoid oils.

FAQ

1.Q:What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We will send you the packing list and the photos of the products before your payment.

2.Q:Do you have MOQ request?
A: We don’t have MOQ request. We are wholesaler for ISUZU Truck spare parts, we have a large stock of products.

3.Q: What is the delivery time?
A: The delivery is depends on the storage. If the items we have in stock, we can make delivery within 7days. For the items need to be ordered the delivery is betwen20-45 days.

4.Q.:Can you produce according to the samples?
A: Clients’sample is welcome. We are able to produce the specific products according to your sample.

5.Q: Can l get a lower price if l order large quantities?
A: Yes, cheaper prices with bigger amount of order.
