Product Details:
|
| Part No.: | 8982055040 | OEM NO.: | 8982055040 8 98205504 0 |
|---|---|---|---|
| Part Type: | Spring Chamber | Warranty: | 6 Months |
| Application: | Brake Parts | Quality: | High Quality |
| Car Make: | ISUZU NQR90 | Model: | NQR90 |
| Material: | Metal&Rubber | Color: | Black |
| Year: | 1998-2011 | ||
| Highlight: | Spring Chamber Isuzu Brake Parts,8982055040 Isuzu Brake Parts,Isuzu Spring Chamber |
||

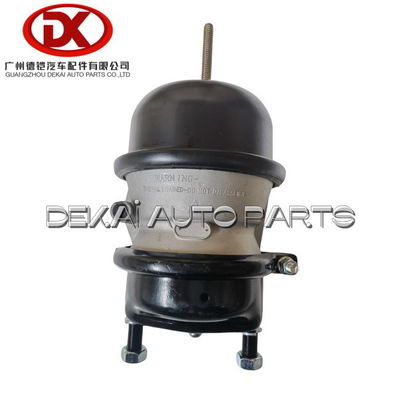

Isuzu Brake Parts NQR90 Spring Chamber 8982055040 8 98205504 0 Assy
| Part No. | 8982055040 |
| OEM No. | 8982055040 8 98205504 0 |
| Description | Spring Chamber |
| Model | ISUZU NQR90 |
8982055040 8 98205504 0 Spring Chamber Isuzu Brake Parts NQR90
More Parts:
| Part NO. | OEM NO. | Part Name | Model |
| WW80001 | 8972536510 9516306660 | Shock absorber rear ISUZU NQR 71/66 | ISUZU NQR 71/66 |
| 9516306650 | SHOCK ABSORBER FRT | NPR NKR 600P | |
| WW80002 | 5516300260 | Shock absorber rear BOGDAN | BOGDAN A-091/092 |
| WW80003 | 8972536170 | Shock absorber front | 4HG1 |
| WW80004 | 8972536180 | Shock absorber front ABS | 4HG1-T/4HE1/4HK1 |
| WW80005 | Torque rod bolt | Torque rod bolt | BOGDAN |
| WW80006 | 9513616022 | Spring bolt d=16 | BOGDAN & ISUZU |
| WW80007 | 8980114880 | Spring bolt d=18 | BOGDAN & ISUZU |
| WW80008 | Torque rod rubber bushing | Torque rod rubber bushing | BOGDAN |
| WW80009 | 8971846991 8941185880 | Silentblock 16 (1/2) | BOGDAN & ISUZU |
| WW80009-PU | Silentblock 16 PU (1/2) | Silentblock 16 PU (1/2) | Silentblock 16 PU (1/2) |
| WW80009-RU | Silentblock 16 Rubber (1/2) | Silentblock 16 Rubber (1/2) | Silentblock 16 Rubber (1/2) |
| WW80010 | 8970748260 | Silentblock 18 (1/2) | BOGDAN & ISUZU |
| WW80011 | 8970815860 | Silentblock 18 | BOGDAN & ISUZU |
| WW80011-PU | 8970815860-PU | Silentblock PU (18) | Silentblock PU (18) |
| WW80011-RU | 8970815860-RU | Silentblock Rubber (18) | Silentblock Rubber (18) |
| WW80012 | 8941303540 | Silentblock 16 | BOGDAN & ISUZU |
| WW80012-PU | 8941303540-PU | Silentblock PU (16) | Silentblock PU (16) |
| WW80012-RU | 8941303540-RU | Silentblock Rubber (16) | Silentblock Rubber (16) |
| WW80013 | 8970895560 | Stabilizer rubber bushing (lower; big) | BOGDAN & ISUZU |
| WW80014 | 5-87830979-PT | KING PIN KIT COPPER BUSH | BOGDAN & ISUZU |
| WW80015 | 8971370940 | Hub nut rear | BOGDAN & ISUZU |
| WW80016 L | 8980079070 8973598100 | Wheel nut rear left M25*1.5 M41*25 (For WW80060/59) | BOGDAN & ISUZU |
| WW80016 R | 8973598100 | Wheel nut rear right M25*1.5 R (For WW80060/59) | BOGDAN & ISUZU |
| WW80017 | 9091105220 | Wheel nut rear/front M22*1.5 M41*25 inner (WW80061) | BOGDAN & ISUZU |
| WW80018 L | 8973598100 | Wheel nut rear wide left M30*1.5 M41*25 (For WW80060 L ) | BOGDAN & ISUZU |
| WW80019 L | 8-97359808-0 | wheel nut front left M20*1.5 M41*25 (For WW80061 L ) | BOGDAN & ISUZU |
| WW80019 R | 8-97359807-0 | wheel nut front right M20*1.5 M41*25 (For WW80061 R | BOGDAN & ISUZU |
| WW80020 | 8942473571 | Hub nut front | BOGDAN & ISUZU |
| WW80021 | 8972336670 | Wheel disk | BOGDAN & ISUZU |
| WW80022 | WW80022 | Wheel key 41 | BOGDAN & ISUZU |
| WW80023 | 8973601010 | Front hub cap | BOGDAN & ISUZU |
| WW80024 | 8972225100 | Tie-rod end left | BOGDAN & ISUZU |
| WW80025 | 8972225090 | Tie-rod end right | BOGDAN & ISUZU |
| WW80026-A | 8973886510 8971365740 | Hydraulic power steering | 4HG1 |
| WW80026-B | 8973886510 | Hydraulic power steering | 4HG1 |
| 8970788790 | 8970788790 | PUMP ASM, OIL P/S | NPR 4BC2 |
| WW80027 | 8944223804 | Spring stop front | 4HG1/4HG1-T/4HE1/4HK1 |
| WW80027-ZS | 8944223804 | Spring stop front | 4HG1/4HG1-T/4HE1/4HK1 |
| WW80028 | 8972543870 | Spring stop rear ISUZU | ISUZU NKR57 , NPR, NQR |
| WW80029 | Torque rod pin | Torque rod pin | BOGDAN |
| WW80030 | 8972107712 | Steering knuckle left | 4HG1/4HG1-T/4HE1/4HK1 |
| WW80031 | 8971476360 | Connecting Tie Rod | 4HG1/4HG1-T/4HE1/4HK1 |
| WW80032 | 9000936090 | Hub bearing rear out 28680/22 | 4HG1/4HG1-T/4HE1/4HK1 |
| WW80033 | 8971229380 | hub bearing rear inner 30213 | 4HG1/4HG1-T/4HE1/4HK1 |
| WW80034 | 8981712540 | Hub bearing front inner 32210 | 4HG1/4HG1-T/4HE1/4HK1 |
| WW80035 | 9000931720 | Hub bearing front out 32207 | 4HG1/4HG1-T/4HE1/4HK1 |
Brake chamber
The spring brake assemblyconsists of the service brake and parking/emergency brake. The service brake is the section at the clamp closest to the axle. The diaphragm, pushrod and return spring may be serviced by removing the clamp. The spring/emergency brake is everything from the first clamp to the end farthest from the axle.The spring brake assemblyconsists of the service brake and parking/emergency brake. The service brake is the section at the clamp closest to the axle. The diaphragm, pushrod and return spring may be serviced by removing the clamp. The spring/emergency brake is everything from the first clamp to the end farthest from the axle.Spring Brakes Function
The spring brake assembly is bolted to a mounting bracket on the axle. The spring brake pushrod clevis is attached to a slack adjuster which is attached to a camshaft. As the spring brake pushrod is extended from the chamber, either by the parking/emergency brake or by service air pressure, the linear force of the pushrod is converted to rotational force by the slack adjuster and camshaft. This spreads the brake shoes against the brake drum.
When air is applied to the parking/emergency brake, the load of the heavy spring is released allowing the wheels to turn. When the driver steps on the brake pedal, a signal is sent to a relay valve that then sends air pressure to the service chamber of the spring brake. The air pressure causes the pushrod to extend which in turn applies the brake. This air pressure is released once the driver takes his or her foot off of the brake pedal.
The spring brake is designed to apply the brakes automatically in the event that there is a loss of system air pressure. This happens because the air pressure holding back the heavy parking/emergency spring dissipates allowing the spring to extend the pushrod which in turn applies the brake.
