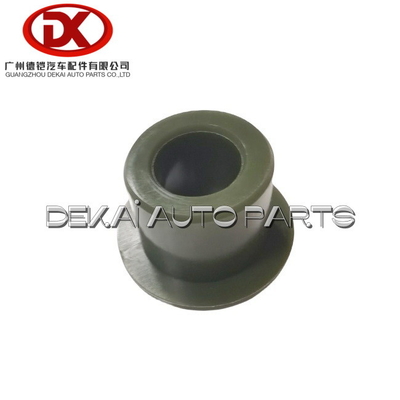

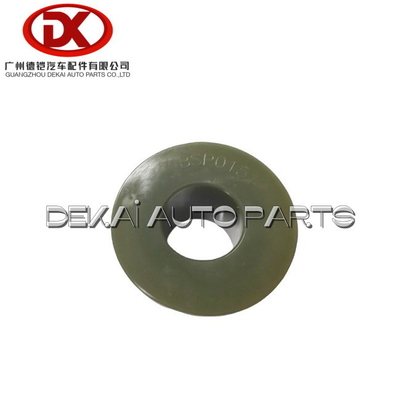

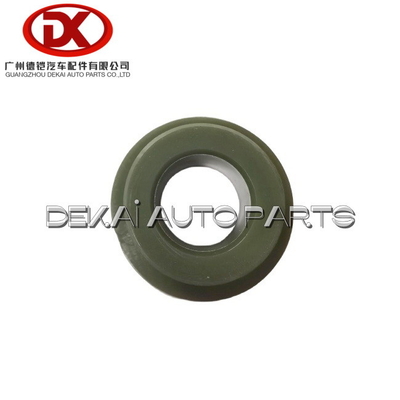

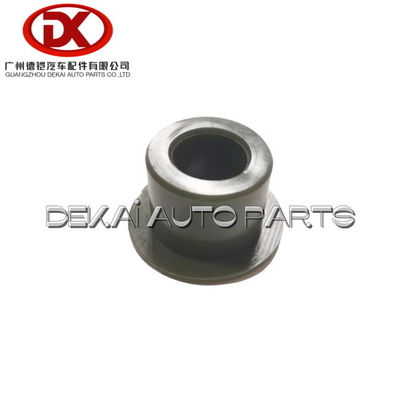

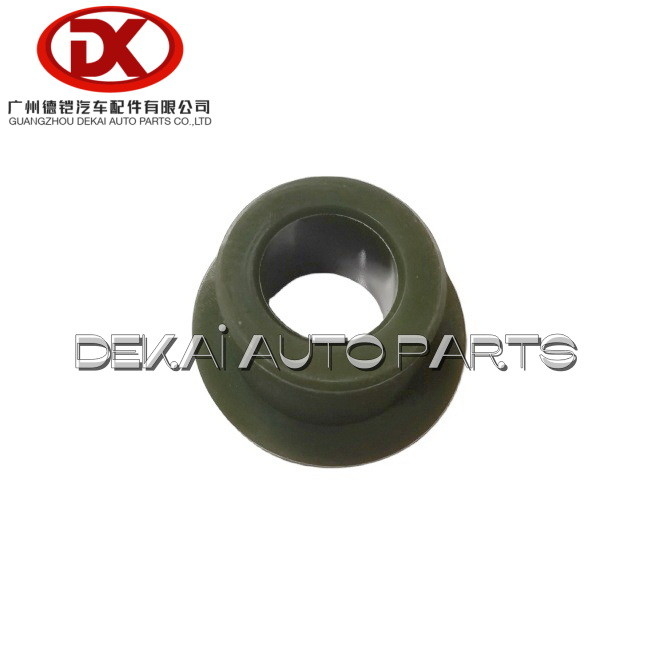

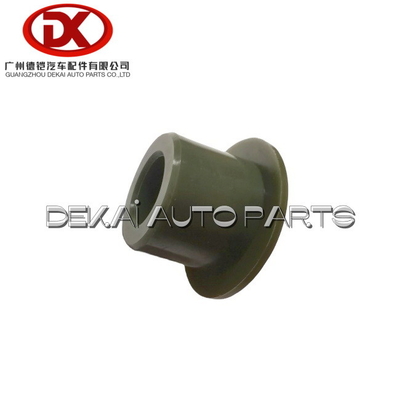

Isuzu Front Stabilizer Bracket Sleeve 1516890153 1516890152 1 51689015 2

1516890153 1516890152 1 51689015 2 Isuzu Front Stabilizer Bracket Sleeve bushing

WW6H011 1516890153 1516890152

More Parts:

Brake chamber

The spring brake assemblyconsists of the service brake and parking/emergency brake. The service brake is the section at the clamp closest to the axle. The diaphragm, pushrod and return spring may be serviced by removing the clamp. The spring/emergency brake is everything from the first clamp to the end farthest from the axle.The spring brake assemblyconsists of the service brake and parking/emergency brake. The service brake is the section at the clamp closest to the axle. The diaphragm, pushrod and return spring may be serviced by removing the clamp. The spring/emergency brake is everything from the first clamp to the end farthest from the axle.Spring Brakes Function
The spring brake assembly is bolted to a mounting bracket on the axle. The spring brake pushrod clevis is attached to a slack adjuster which is attached to a camshaft. As the spring brake pushrod is extended from the chamber, either by the parking/emergency brake or by service air pressure, the linear force of the pushrod is converted to rotational force by the slack adjuster and camshaft. This spreads the brake shoes against the brake drum.
When air is applied to the parking/emergency brake, the load of the heavy spring is released allowing the wheels to turn. When the driver steps on the brake pedal, a signal is sent to a relay valve that then sends air pressure to the service chamber of the spring brake. The air pressure causes the pushrod to extend which in turn applies the brake. This air pressure is released once the driver takes his or her foot off of the brake pedal.
The spring brake is designed to apply the brakes automatically in the event that there is a loss of system air pressure. This happens because the air pressure holding back the heavy parking/emergency spring dissipates allowing the spring to extend the pushrod which in turn applies the brake.

FAQ

1.Q:What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We will send you the packing list and the photos of the products before your payment.

2.Q:Do you have MOQ request?
A: We don’t have MOQ request. We are wholesaler for ISUZU Truck spare parts, we have a large stock of products.

3.Q: What is the delivery time?
A: The delivery is depends on the storage. If the items we have in stock, we can make delivery within 7days. For the items need to be ordered the delivery is betwen20-45 days.

4.Q.:Can you produce according to the samples?
A: Clients’sample is welcome. We are able to produce the specific products according to your sample.

5.Q: Can l get a lower price if l order large quantities?
A: Yes, cheaper prices with bigger amount of order.
