Suitable for ISUZU NKR NPR Shift Arm 8973627321 8 97362732 1

Certification
China Guangzhou Dekai Auto Part Co.,Ltd certification
China Guangzhou Dekai Auto Part Co.,Ltd certification
I'm Online Chat Now

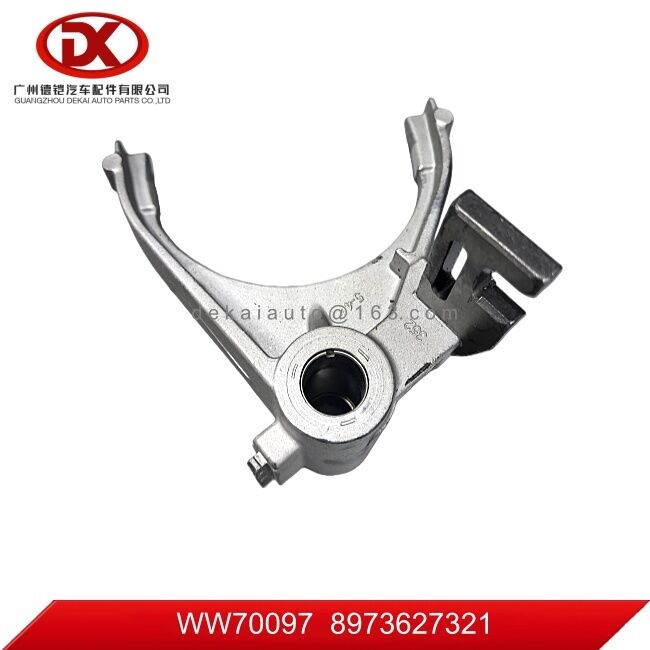

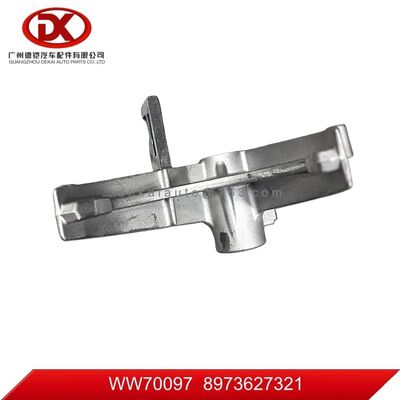

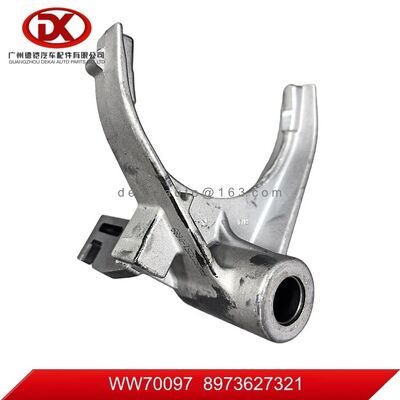

Suitable for ISUZU NKR NPR Shift Arm 8973627321 8 97362732 1

Suitable for ISUZU NKR NPR  Shift Arm  8973627321  8 97362732 1
Suitable for ISUZU NKR NPR  Shift Arm  8973627321  8 97362732 1 Suitable for ISUZU NKR NPR  Shift Arm  8973627321  8 97362732 1 Suitable for ISUZU NKR NPR  Shift Arm  8973627321  8 97362732 1

Large Image :  Suitable for ISUZU NKR NPR Shift Arm 8973627321 8 97362732 1

Product Details:
Place of Origin: CHINA
Certification: ISO9001
Model Number: WW70097
Payment & Shipping Terms:
Minimum Order Quantity: 20PCS
Price: Negotiable
Packaging Details: Neutral Package or as customers' request
Delivery Time: 5-35 work days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 1000PCS/Months

Suitable for ISUZU NKR NPR Shift Arm 8973627321 8 97362732 1

Description
Part No.: WW70097 OEM NO.: 8973627321 8 97362732 1
Part Type: Shift Arm Warranty: 6 Months
Application: Transmission Parts Quality: High Quality
Car Make: ISUZU NKR NPR Material: Iron&steel
Color: Silvery Packing: Neutral Packing
Highlight:

ISUZU NKR Shift Arm

,

ISUZU NPR Shift Arm 8973627321

Suitable for ISUZU NKR NPR  Shift Arm  8973627321  8 97362732 1

Part No. WW70097
OEM No. 8973627321  8 97362732 1
Description Shift Arm
Model ISUZU NKR NPR

WW70097  8973627321  8 97362732 1 Shift Arm ISUZU NKR NPR


More Parts:

Part No. OEM NO. Description Model
WW70061 8972413121 Synchronizer ring 2/3 MYY5T/4HG1/4HF1
WW70062 8972413061 RING MYY5T
WW70063 8980195360 Detent;Ball  FRR/FSR
WW70064 8973604100 Secondary shaft nut  MYY5T
WW70065 8973500100 Transmition gear 1   MYY5T
WW70066 8972412370 Transmition gear 2  MYY5T
WW70067 8972412340 Transmition gear 3   MYY5T
WW70068 8972412440 Transmition gear R  MYY5T MYY5T/MYY6S
WW70069 8972531021 BEARING MYY5T /4HG1
WW70070 8972531140 NEEDLE,REV GEAR MZZ6S MYY5T
WW70072 8972531120 Bearing gear 5th MYY5T/NPR
WW70073 8972535560 Spedometer gear MYY5T
WW70074 8970946850 Differential 6:41 NQR
WW70075 8972531160 SHAFT; MAIN,TRA MT/MYY6P
WW70076 8980212660 SHAFT; TOP GEAR MT/MYY6P
WW70077 8973670225 SYNCHRONIZER AS MYY6P MT
WW70078 8973806271 GEAR; COUNTER D NPR75/NQR90
WW70081 8973865820 6th gear (Z = 21) gearbox MT/MYY6S
WW70084 8973865800 GEAR: 6TH,COUNTER NPR75/NQR90
WW70085 8972412300 4th Gear; Mainshaft NPR75/NQR90
WW70086 8982029021 Gear shift Cable L=3115mm  NPR
WW70087 8982029071 Gear shift Cable L=3274mm  NLR NPR

The function of Shift Arm

1.Engages or disengages the synchronizer and gears: During shifting, the shift fork moves left and right driven by the shift shaft, pushing the synchronizer sleeve to mesh with the corresponding gear to complete gear selection.

2.Transmits shifting force: Converts the force from the gear lever into axial thrust to engage or disengage gears.

3.Maintains stable gear engagement: Locks in position after engagement to prevent accidental gear disengagement while driving.


Working Principle of the Shift Arm

The gear lever drives the shift shaft to rotate or move, which in turn pushes the shift fork to move axially.The shift fork is fitted in the groove of the synchronizer and pushes the synchronizer sleeve to slide left or right, engaging or disengaging with the target gear to complete gear shifting.After shifting, the shift fork is held in position by a locking device to prevent gear disengagement during driving.


Our advantage
1. Quality stable, price competitive, good after-sale service
All of the products we offer are good quality with reasonable price. We focus on the product quality and after-sales services to ensure the benefit of our customers. To give customers confidence in long-term cooperation with our company.
2. Many of our products have stock, the delivery time is fast.
Our Isuzu products have a large amount of stock inventory, can save time cost for customers. The stock products we can ship within 3 days. if the product need to produce, the delivery time will be depends on the items and the quantity of the order.
3. No MOQ Request, small order acceptable.
Our ISUZU products we do not have MOQ requirements, we accept any quantity of orders from customers. Of course, the order quantity is bigger, the price will be more favorable.
4. One-stop service
We can provide to customers with other products except Isuzu parts, and we can receive goods for customers from other suppliers and make shipment.


Suitable for ISUZU NKR NPR  Shift Arm  8973627321  8 97362732 1 0
