Brake Cylinder Parts Rear Engine System 8973588810 Brake Cylinder Assembly
| Brand Name: | MAGTEK |
| Model Number: | WW50021 R2 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Neutral Package or as customers' request |
| Payment Terms: | T/T, Western Union,Paypal |
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
OEM NO.:
8973588810
Material:
Steel+rubber
Model:
ISUZU 4HG1-T/4HE1/4HK1
Quality:
Factory, Standard
Warranty:
3 Months
Size:
OEM Standard Size
Car Fitment:
Isuzu Engine Heavy 700P
Weight:
1.6Kg
Supply Ability:
1000PCS/Months
Highlight:
Brake Cylinder Parts R2
,Brake Cylinder Parts 8973588810
,8973588810
Product Description

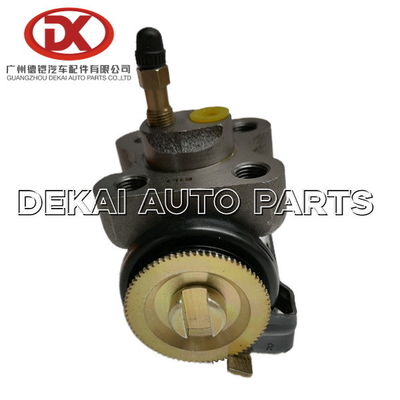

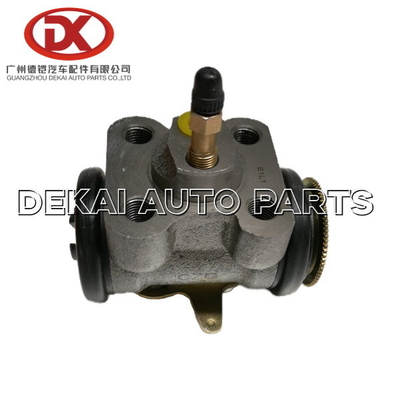

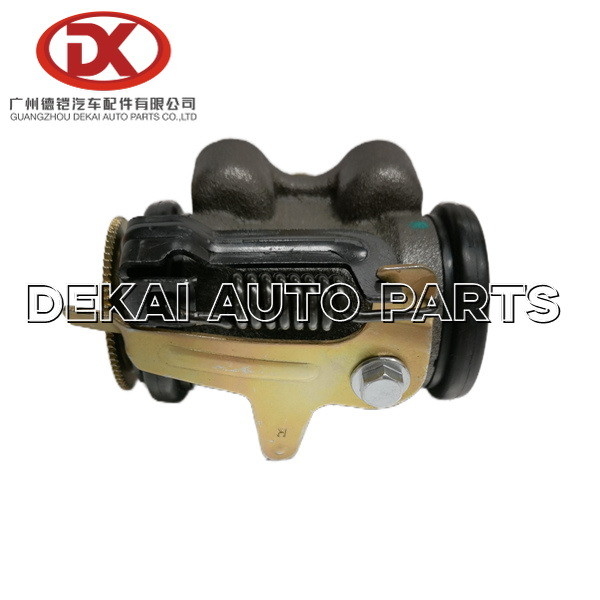

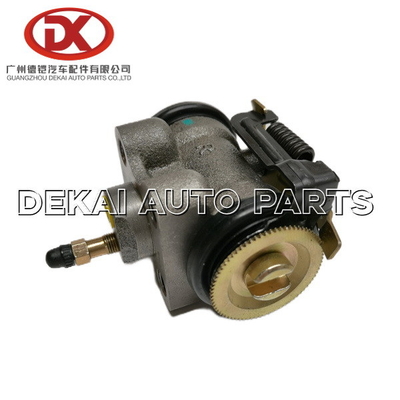

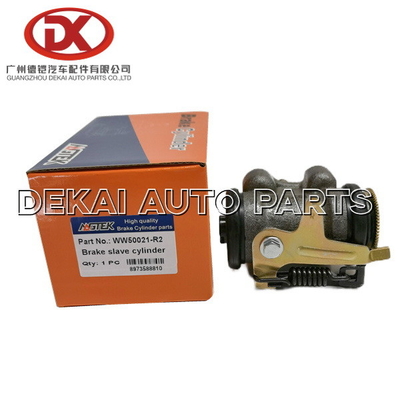

ISUZU Brake Cylinder parts Engine System Brake slave cylinder rear R 8973588810
| Part No. | WW50021 R2 |
| OEM No. | 8973588810 |
| Description | Brake slave cylinder rear R |
| Model | 4HG1-T/4HE1/4HK1/700P |
Brake slave cylinder rear R WW50021 R2 8973588810 4HG1-T/4HE1/4HK1/700P
Brake Cylinder parts
| S/N# |
DK NO. | PART NO. |
DESCRIPTION |
MODEL |
BORE SIZE |
|
| 1 | DK-IS01 L | 8980812910 8980812906 8973588740 |
BRAKE WHEEL CYKINDER | BRAKE WHEEL CYKINDER | ISUZU 700P | 1 3/16 |
| 2 | DK-IS01 R | 8980812900 8973588750 |
BRAKE WHEEL CYKINDER | BRAKE WHEEL CYKINDER | ISUZU 700P | 1 3/16 |
| 3 | DK-IS01 LB | 8980812930 8973588760 |
BRAKE WHEEL CYKINDER | BRAKE WHEEL CYKINDER | ISUZU 700P | 1 3/16 |
| 4 | DK-IS01 RB | 8980812920 8973588770 |
BRAKE WHEEL CYKINDER | BRAKE WHEEL CYKINDER | ISUZU 700P | 1.1875 |
| 5 | DK-IS02 L | 897358878 | BRAKE WHEEL CYKINDER | BRAKE WHEEL CYKINDER | ISUZU 700P | 1 5/16 |
| 6 | DK-IS02 R | 887358879 | BRAKE WHEEL CYKINDER | BRAKE WHEEL CYKINDER | ISUZU 700P | 1 5/16 |
| 7 | DK-IS02 LB | 897358880 | BRAKE WHEEL CYKINDER | BRAKE WHEEL CYKINDER | ISUZU 700P | 1 5/16 |
| 8 | DK-IS02 RB | 887358881 | BRAKE WHEEL CYKINDER | BRAKE WHEEL CYKINDER | ISUZU 700P | 1 5/16 |
What is Brake Cylinder made of ?
A wheel cylinder is a component of a hydraulic drum brake. It comprises a housing made from made from grey cast iron or – in the of newer models – aluminium, which is more lightweight.
The wheel cylinder consists of a cylinder that has two pistons, one on each side. Each piston has a rubber seal and a shaft that connects the piston with a brake shoe. When brake pressure is applied, the pistons are forced out pushing the shoes into contact with the drum.
